Tylaska CR8 Standard Swivel Bail Snap Shackle

Item #

TY1108-S

$85.40 $113.87 You Save 25% ($28.47)

Usually ships within 1-3 days

Description

Product Description

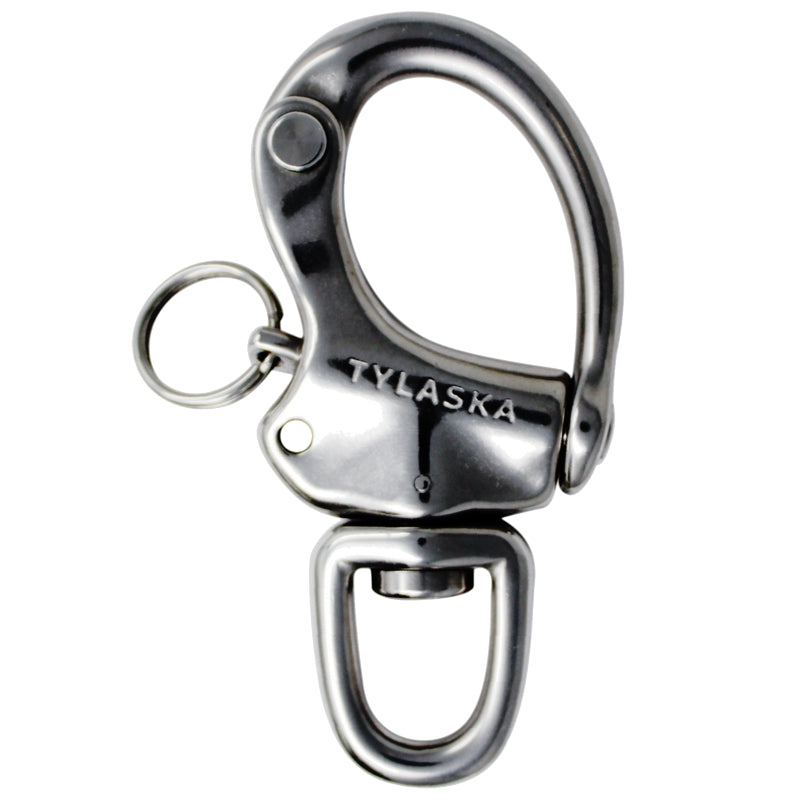

Tylaska CR8 Standard Swivel Bail Snap Shackle

The CR snap shackle incorporates the extreme strength, outstanding corrosion resistance, and aerospace quality of Tylaska’s high performance racing hardware at a price that the cruiser or casual racer will find appealing.

Unlike many plunger-pin snap shackles that are prone to catching on stays, the sleek geometry of the CR shackle has been optimized to reduce the risk of snagging and fouling.

The locking hole feature allows the plunger pin to be locked in place using a small line or zip tie. Useful in extreme conditions where snap shackles have been known to release due to severe flogging.

Specifications

Bail Type - Swivel Bail

Safe Working Load(lb.) - 4,410 (2,000kg)

Breaking Strength(lb.) - 8,820 (4,000kg)

Weight(oz.) - 3.5oz (128g)

Dimensions

A(in.) - 0.96" (24.4mm)

B(in.) - 0.54" (13.7mm)

C(in.) - 3.65" (92.7mm)

D(in.) - 1.74" (44.2mm)

E(in.) - 0.25" (6.4mm)

F(in.) - 0.54" (13.7mm)
