Tylaska 8 3/32" T40 Standard/Large Bail Swivel

Item #

TY1240-SL

Usually ships within 1-3 days

Product Description

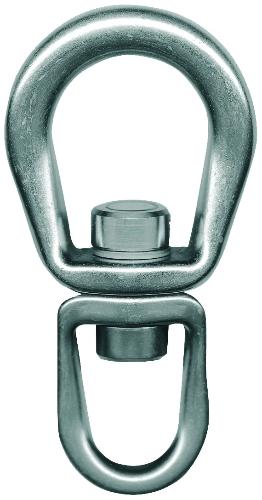

Tylaska 8 3/32" T40 Standard/Large Bail Swivel

Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T40 Std/Large Bail Swivel

  • Safe Working Load(lb.) - 20,000 (9,070kg)

  • Breaking Strength(lb.) - 40,000 (18,140kg)

  • Weight(oz.) - 56.1

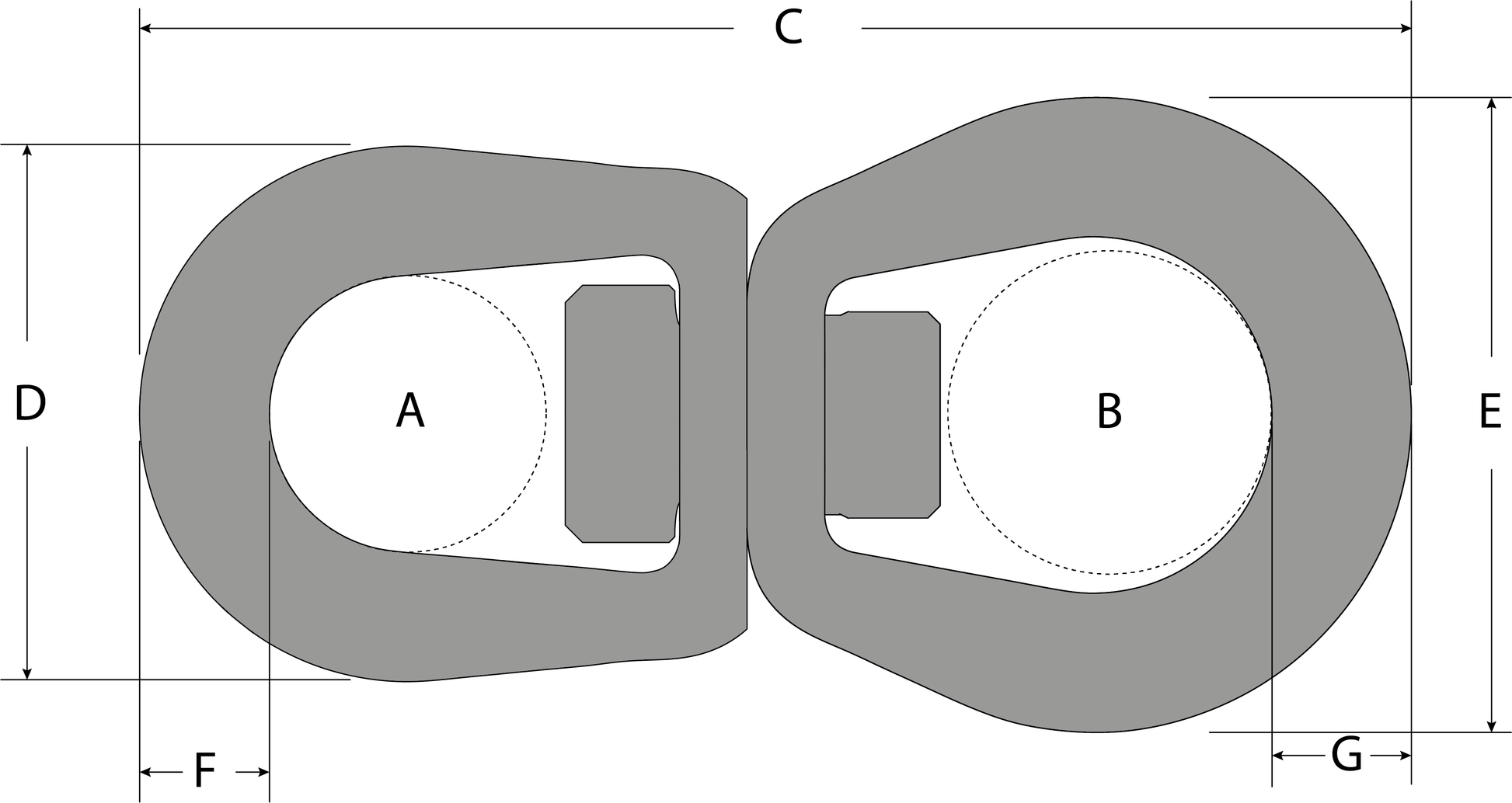

    Dimensions

  • A(in.) - 1.79" (45.5mm)

  • B(in.) - 2.67" (67.8mm)

  • C(in.) - 9.32" (236.7mm)

  • D(in.) - 3.28" (83.3mm)

  • E(in.) - 4.90" (124.5mm)

  • F(in.) - 0.74" (18.8mm)

  • G(in.) - 1.04" (26.4mm)
