Product Description

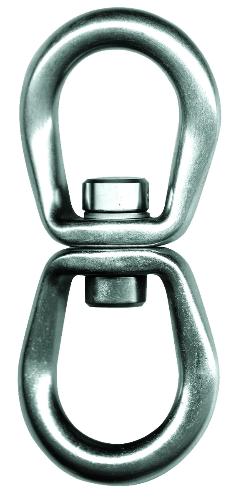

Tylaska 4 9/32" T12 Large/Large Bail Swivel
Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications
Shackle Type - T12 Large/Large Bail Swivel
Safe Working Load(lb.) - 6,000 (2,720kg)
Breaking Strength(lb.) - 12,000 (5,440kg)
Weight(oz.) - 7.6

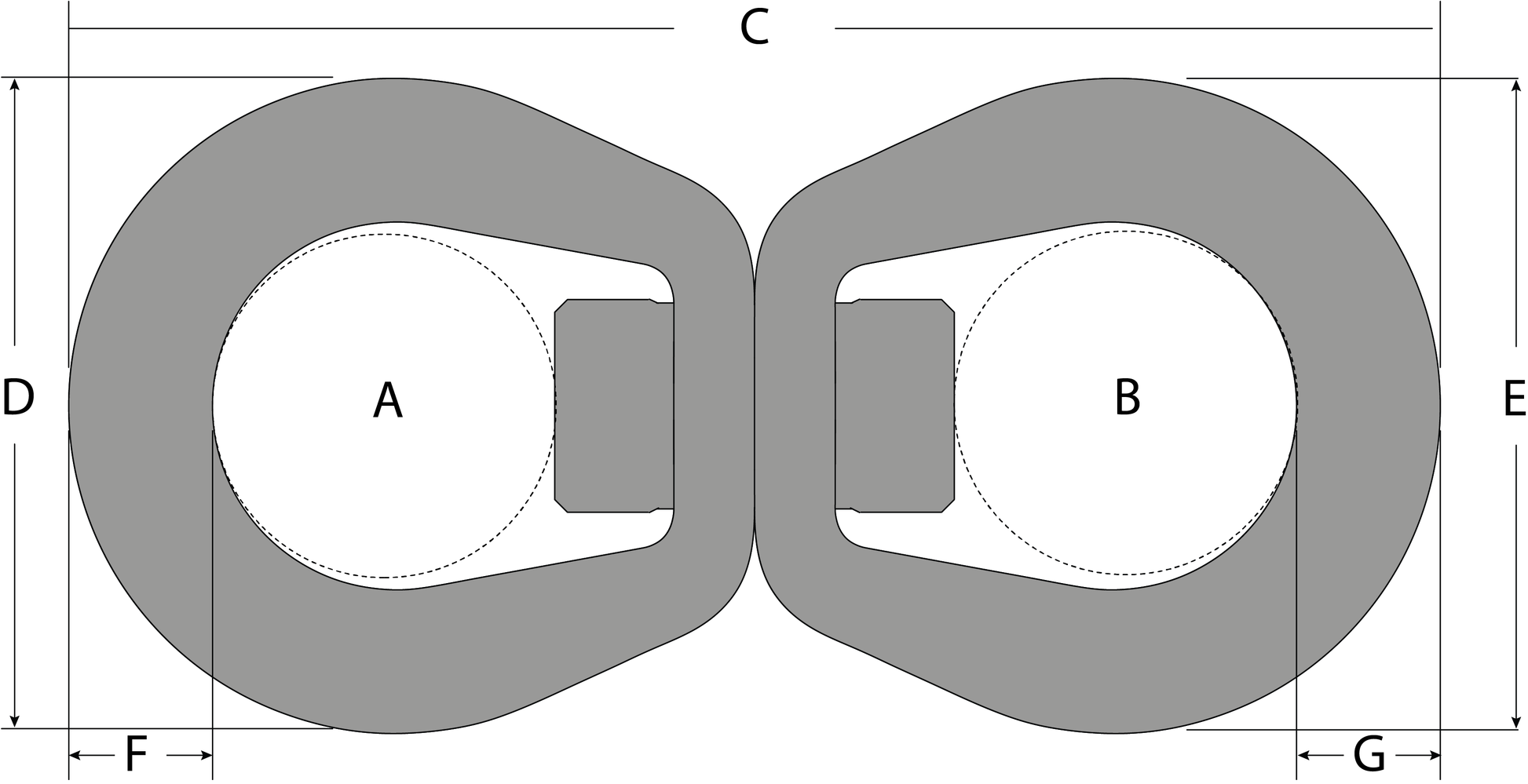

Dimensions
A(in.) - 1.11" (28.2mm)
B(in.) - 1.11" (28.2mm)
C(in.) - 4.38" (111.3mm)
D(in.) - 2.08" (52.8mm)
E(in.) - 2.08" (52.8mm)
F(in.) - 0.44" (11.2mm)
G(in.) - 0.44" (11.2mm)
