Tylaska 3 7/16" T8 Large/Clevis Bail Swivel

Tylaska 3 7/16" T8 Large/Clevis Bail Swivel

$142.70 USD
$190.26 USD $142.70 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

Tylaska 3 7/16" T8 Large/Clevis Bail Swivel

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T8 Large/Clevis Bail Swivel

  • Safe Working Load(lb.) - 4,000 (1,810kg)

  • Breaking Strength(lb.) - 8,000 (3,630kg)

  • Weight(oz.) - 4.1

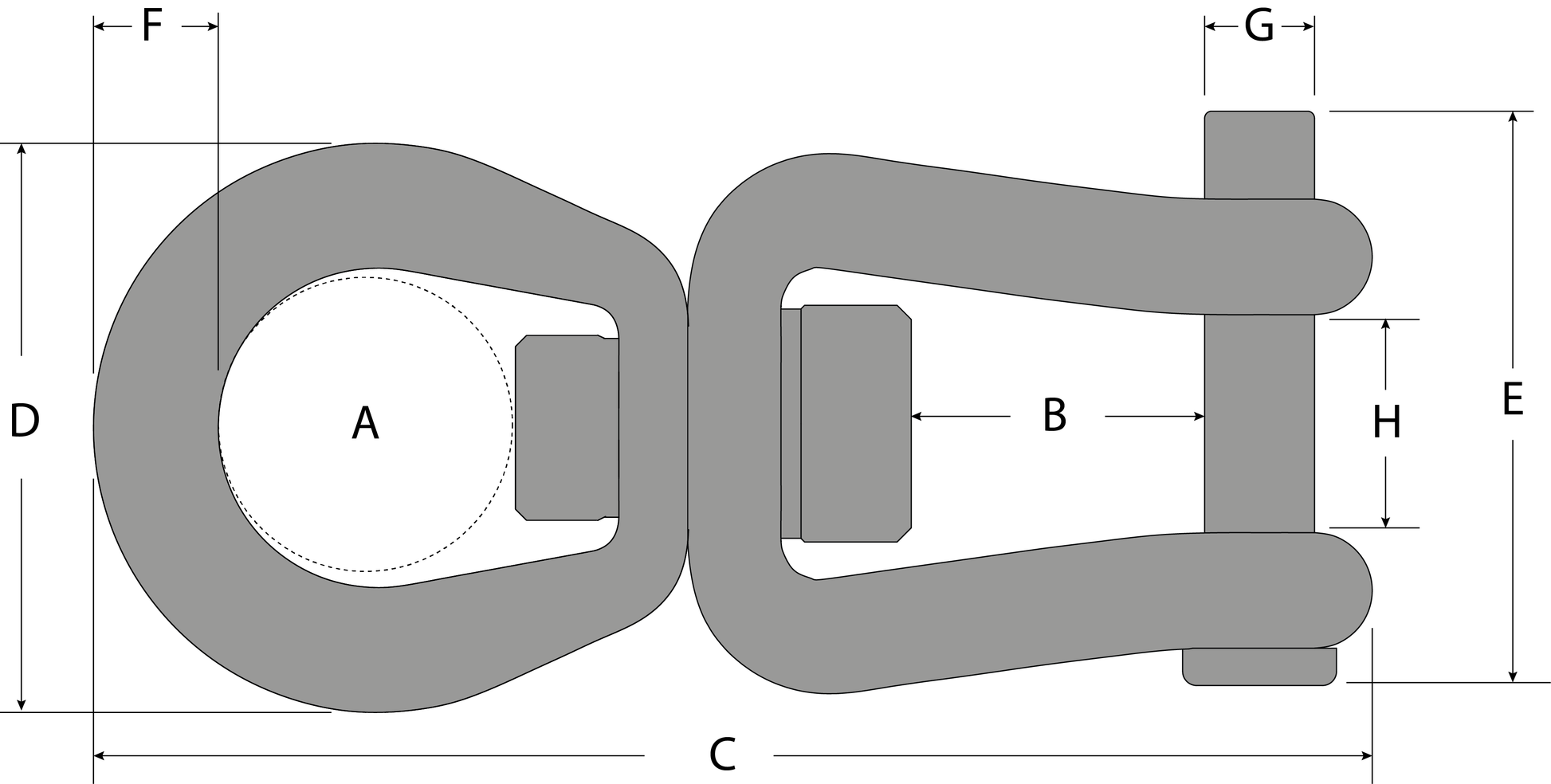

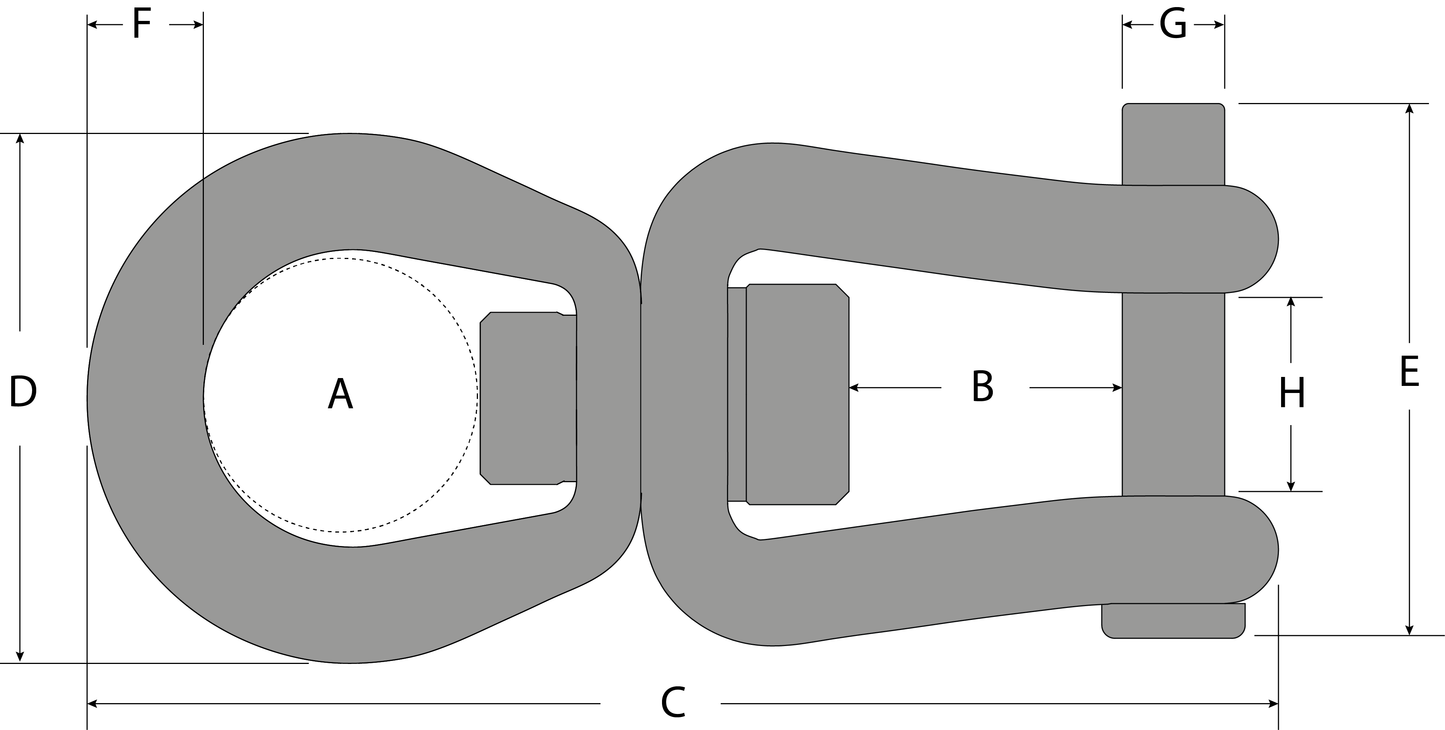

    Dimensions

  • A(in.) - 0.95" (24.1mm)

  • B(in.) - 0.66" (16.8mm)

  • C(in.) - 3.48" (88.4mm)

  • D(in.) - 1.71" (43.4mm)

  • E(in.) - 1.37" (76.2mm)

  • F(in.) - 0.34" (8.6mm)

  • G(in.) - 0.27" (6.9mm)

  • H(in.) - 0.52" (13.2mm)
