Tylaska 12" T50 Large Bail Snap Shackle

Tylaska 12" T50 Large Bail Snap Shackle

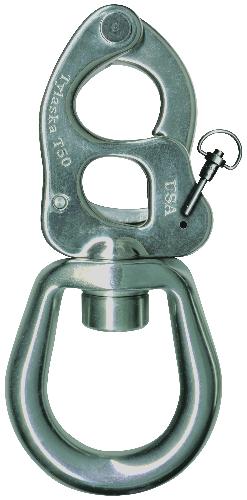

Tylaska T50 Snap Shackles are the largest trigger-type snap shackle ever made. They can be opened using either a trigger or lanyard. A lanyard allows for remote operation - ideal for towing applications. The locking pin provides extra security from accidental release.

Specifications

Shackle Type - T50 Large Bail

Safe Working Load(lb.) - 25,000 (11,340kg)

Breaking Strength(lb.) - 50,000 (22,680kg)

Boat Size(ft.) - 100'+

Weight(lb.) - 9.2lbs (4.15kg)

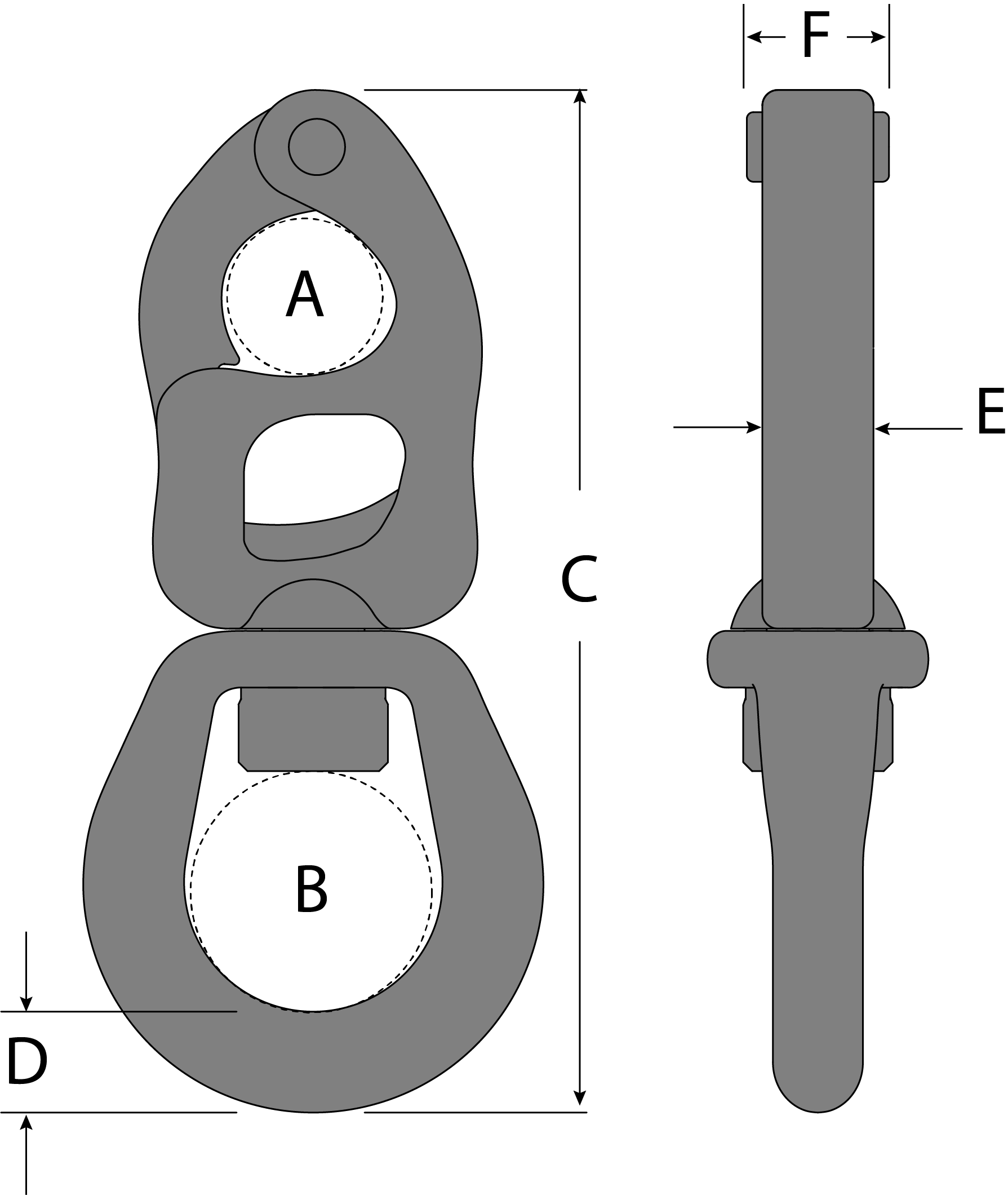

Dimensions

A(in.) - 1.95" (49.5mm)

B(in.) - 2.98" (75.7mm)

C(in.) - 11.884" (300.7mm)

D(in.) - 1.15" (29.2mm)

E(in.) - 1.25" (31.8mm)

F(in.) - 1.55" (39.4mm)
