Product Description

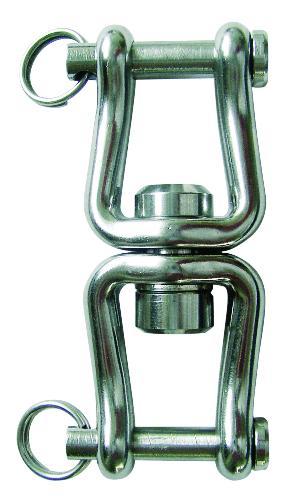

Tylaska 11 3/8" T50 Clevis/Clevis Bail Swivel
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications
Shackle Type - T50 Clevis Bail/Clevis Bail Swivel
Safe Working Load(lb.) - 25,000 (11,340kg)
Breaking Strength(lb.) - 50,000 (22,680kg)
Weight(oz.) - 150

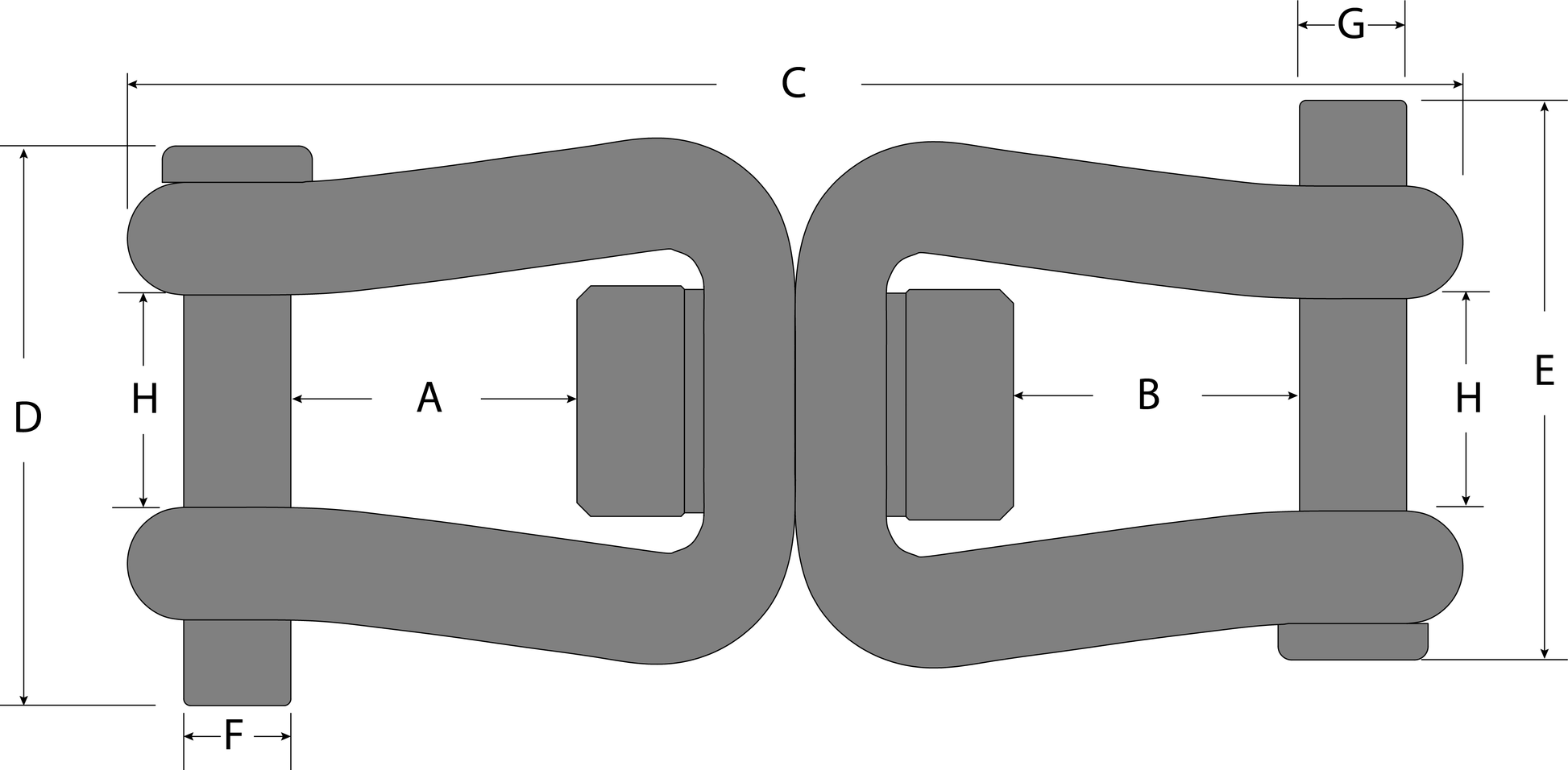

Dimensions
A(in.) - 2.26" (57.4mm)
B(in.) - 2.26" (57.4mm)
C(in.) - 10.56" (268.2mm)
D(in.) - 3.47" (88.1mm)
E(in.) - 3.47" (88.1mm)
F(in.) - 0.88" (22.2mm)
G(in.) - 0.88" (22.2mm)
H(in.) - 1.74" (44.2mm)
