Spinlock

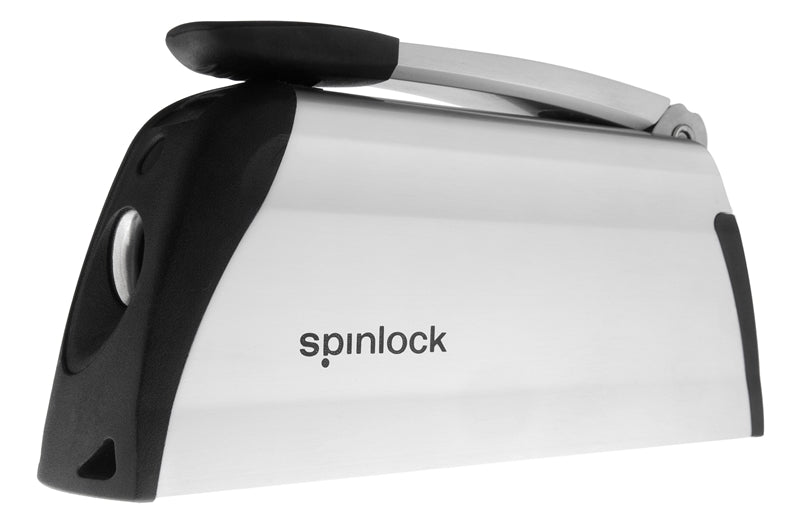

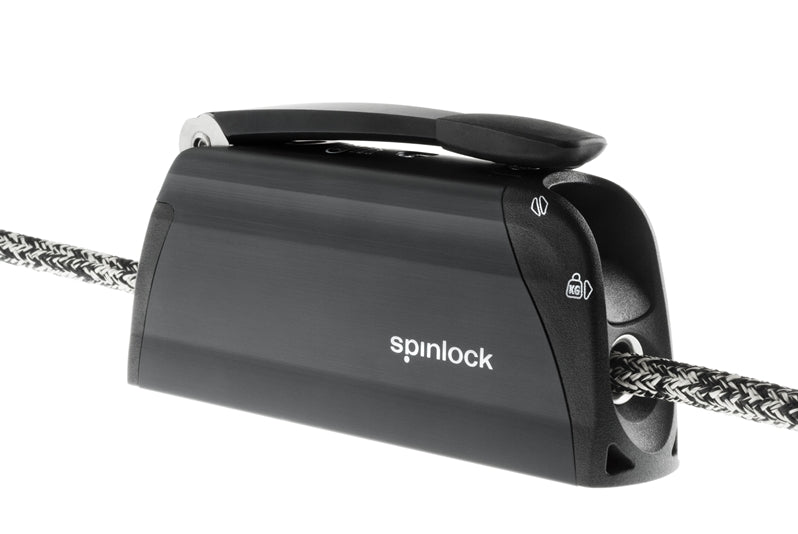

Spinlock XXB Single Side Mount Power Clutch 5/16" to 1/2"
Spinlock XXB Single Side Mount Power Clutch 5/16" to 1/2"
Regular price
$850.00 USD
Regular price
$1,000.00 USD
Sale price
$850.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Spinlock XXB Single Side Mount Power Clutch 5/16" to 1/2"
The XX Range of clutches holds loads 50% higher than any conventional clutch, with smooth and controlled release.
The only secure clutch solution for genoa and spinnaker halyards on performance yachts from 35-50 feet.
Side mounting is the neatest solution for spars, side decks and coamings. Handed port or starboard; use bolted version for conventional installation, or bonded version for building directly into deck or rig to save installation weight
Specifications:
Rope Range - 8mm - 12mm (5/16" - 1/2")
Load - 1200kg - 2300kg (2640lb - 5070lb)
Max SWL - 2300kg (5070lb)
Weight - 1.101kg (2.43lb)
Fasteners - 5 x M6 (1/4") CSK Head (Supplied)
Features and Benefits:
Features and Benefits:
XXA0812 offers users high performance on lines 8-12mm, loads up to 1800kgs. For users looking for enhanced performance on small diameter blended covered lines, load holding up to 2350kgs and excellent resistance to abrasion on powered hoists and control, look at the new XXB0812.
Latest jaw technology offers consistent holding of blended covered ropes
Optimized for high performance 8mm - 12mm (5/16" - 1/2") line diameters
Available white coated, black anodized or silver polished alloy to match deck or rig
Side mount versions available
Lock Open version available
Access ports for fresh water flushing
Smooth controlled release action

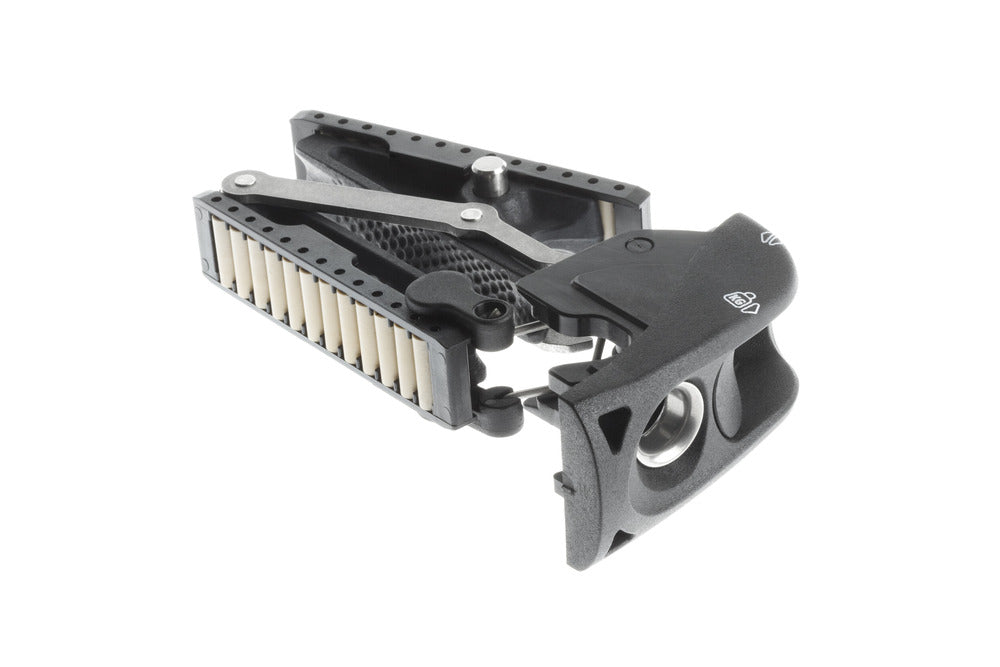

One-piece jaw set is easy to remove and clean
Line height optimized for correct lead to winch
Can be set up for remote operation with no handle
