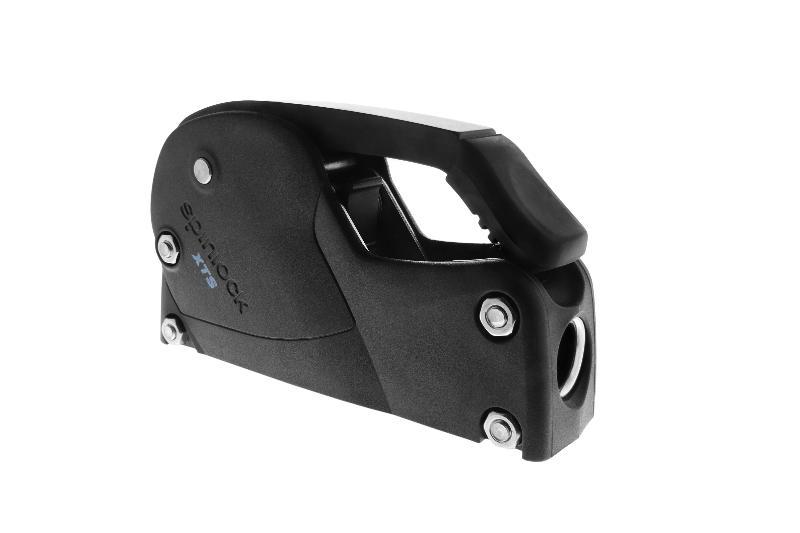

Spinlock XTS Single Clutch 5/16" to 9/16" with Lock-up Cam

Item #

XTS0812/1L

Usually ships within 1-3 days

Product Description

Spinlock XTS Single Clutch 5/16" to 9/16" with Lock-up Cam

Cam fitted with special lock open feature. When lock is engaged, the line is able to fun freely in both directions, with the handle closed, until normal clutch function is needed

Specifications:

Rope Range - 8mm - 14mm (5/16" - 9/16")

Load - 500kg - 1000kg (1103lb - 2200lb)

Max SWL - 1000kg (2200lb)

Weight - 0.550kg (1.21lb)

Specified as standard on production yachts worldwide and the choice of racing yachts inshore and offshore

Features and Benefits:

  • Mid to higher load rope holding

  • Reliable all around performance

  • Choose XTS0610 for best performance on smaller diameter lines

  • Choose XTS0814 for best performance across the rope range

  • Ceramic Coated CAM and Base available for consistent holding & performance with modern performance lines

  • Extruded alloy handle with soft end grip

  • Secure handle locking in open and closed position

  • Easy access to fasteners

  • Handle labels supplied

  • Click Here for Installation & Usage Guide

    Click Here for XTS Drill Template

    Click Here for XTS Side Mounting Drill Template
