Product Description

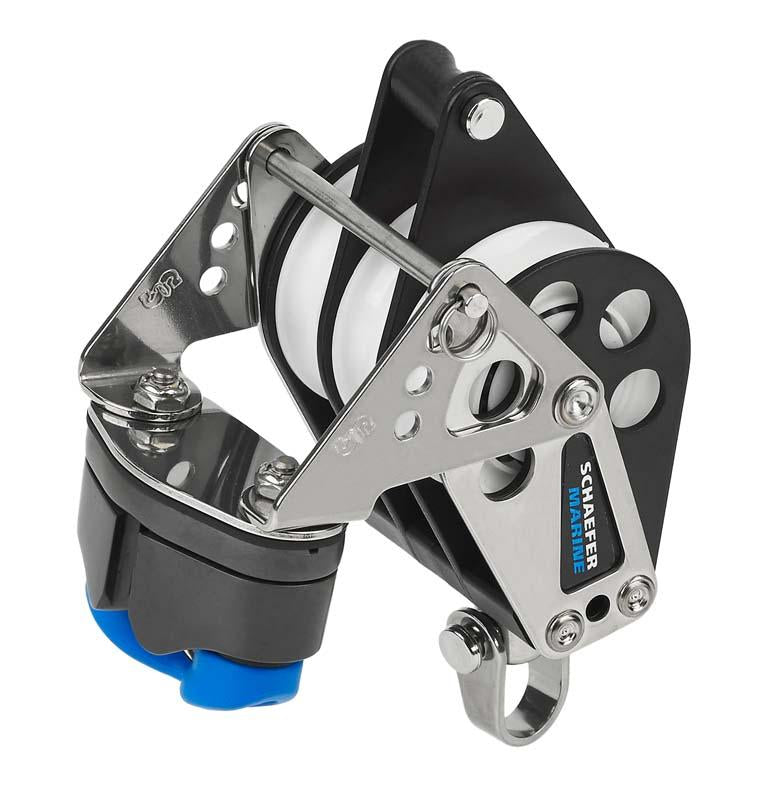

Schaefer Triple Ball Bearing Block with Adj. Cam and Becket
Triple block with becket, ball bearing sheaves and cam cleat. Delrin(tm) ball bearing sheaves provide low-friction operation. Adjustable cam bracket enables correct angle for sheeting. Fast entry cam cleats allow for easy line engagement. Works with 506-90 for 6:1 purchase.
Specifications:
Sheave Dia.: 2 in. (51 mm)
Sheave Width: 9/16 in. (14 mm)
Pin Dia.: 1/4 in. (6 mm)
Max Line: 7/16 in. (11 mm)
Length: 5 17/32 in. (140 mm)
Width: 4 in. (101 mm)
Thickness: 2 5/16 in. (59 mm)
SWL: 1500 lbs. (680 kg)
Weight: 1 lb. 3 oz. (482 g)
