Product Description

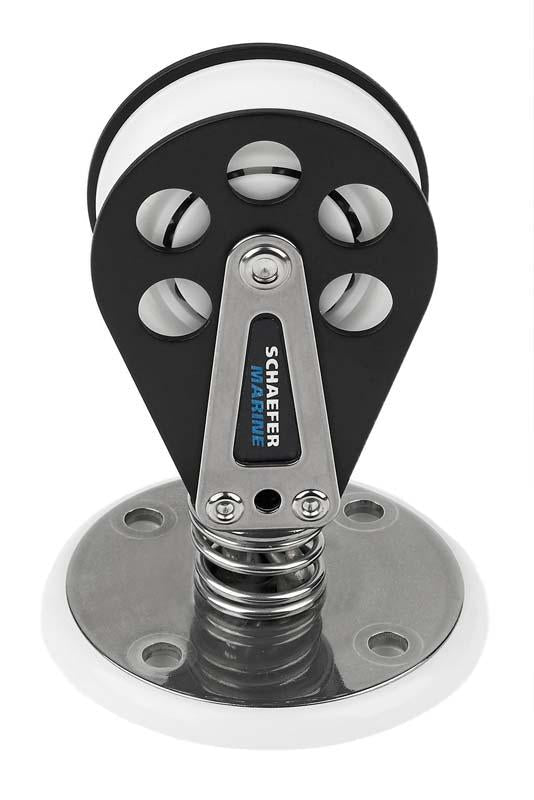

Schaefer Stand-up Swivel w/ 2 2/8" Sheave
Single stand up ball bearing block. Stand up spring keeps block upright when not in use. Stainless steel base spreads load out and may be used with 97-49 backing plate. (sold separately) Delrin(tm) ball bearing sheave provides a low-friction high strength sheave. Boats to 34'.
Specifications:
Sheave Dia.: 2 2/8 in. (60 mm)
Max Line: 1/2 in. (13 mm)
Dia. includes urethane base: 3 3/8 in. (86 mm)
Height: 4 25/32 in. (120 mm)
H2: 2 15/32 in. (63 mm)
Fastener Size: (4), 1/4 in. RH (6 mm)
C/C: 1 11/16 in. (43 mm)
SWL: 2250 lbs. (1020 kg)
Weight Alum.: 11.7 oz (332 g)
