Product Description

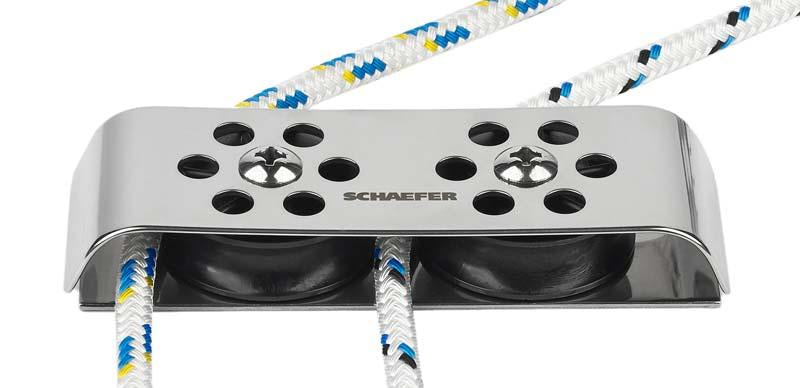

Schaefer 7 Series Double Deck Organizer w/ SS Top Plate
7 Series Double Stainless Steel deck organizer. Stainless Steel base and Stainless Steel top strap provide a high strength base. Delrin(tm) sheaves ensure smooth operation and high strength. Boats to 45'. Aluminum Sheave available - order sheave #62-023-15cw.
Specifications:
Sheave Dia.: 2 3/8 in. (60 mm)
Max Line: 1/2 in. (13 mm)
Length: 6 31/32 in. (177 mm)
Width: 2 3/8 in. (60 mm)
Height: 1 in. (25 mm)
Fasteners: (2) 5/16 in. RH (8 mm)
C/C: 2 3/4 in. (70 mm)
SWL: 3000 lbs. (1365 kg)
Weight Stain.: 1 lb. 4.4 oz. (578 g)
