Product Description

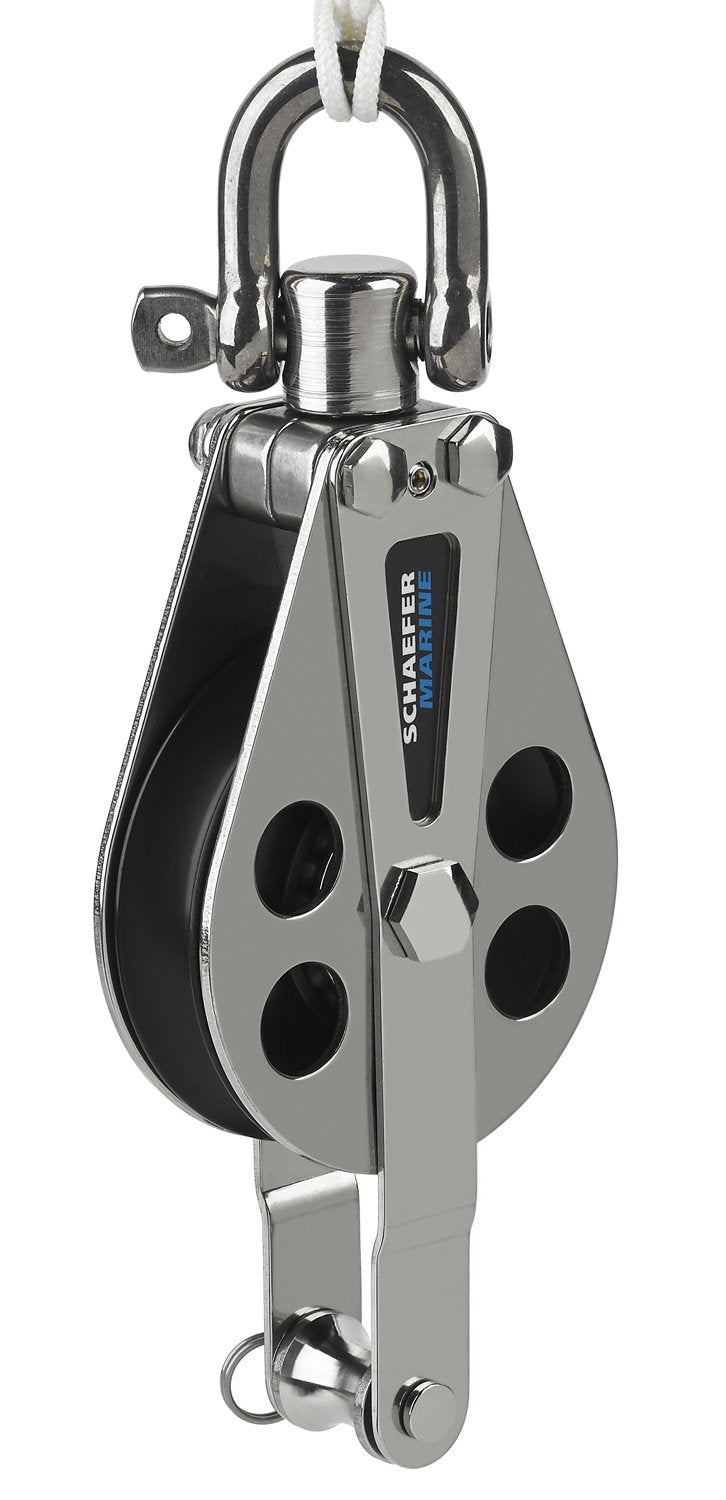

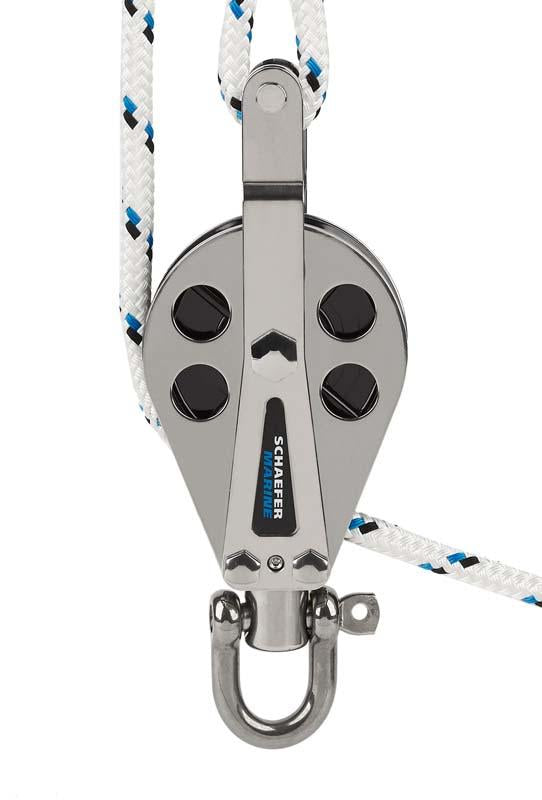

Schaefer Stainless Steel Single Block w/ Becket Max Line 5/8" (16mm)
10 Series Single Block with Stainless Steel cheeks and Becket. Delrin(tm) sheave runs on Nomex(tm)/Teflon(tm) bearings for low-friction and high safe working loads. Stainless Steel D shackle run on a swivel head that may be locked in plate to avoid line twist. Removable becket allows for the use of pre-spliced line. Bolted construction allows for easy maintenance.
Specifications:
Sheave Dia.: 3 1/4 in. (83 mm)
Sheave Width: 13/16 in. (21 mm)
Pin Dia.: 3/8 in. (10 mm)
Thickness: 1 7/32 in. (31 mm)
Width: 3 1/4 in. (83 mm)
Length: 8 19/32 in. (218 mm)
SWL: 3750 lbs. (1750 kg)
Weight: 1 lbs. 10 oz. (737 g)
Max Line: 5/8 in. (16 mm)
Max Wire: 1/4 in. (6 mm)
