Product Description

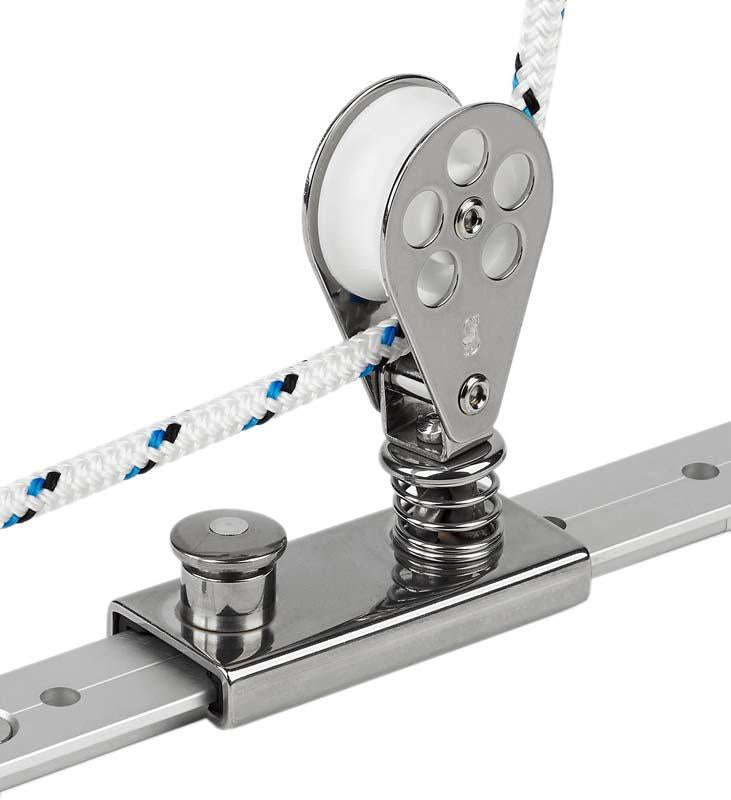

Schaefer 03-86 Spring Loaded Block w/SS Slide
Spring loaded block for 1" T-Track. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and Stainless Steel slider provide a strong and reliable block. Pin stop allows for easy adjustment.
Specifications
Boat Size Up To LOA, Displ., Sail Area: 27', 5000 lbs., 315 sq. ft (8 m, 2270 kg, 29 m2)
Track Size: 1" x 1/8" (25 mm x 3 mm)
Sheave Dia.: 1 7/16 in. (37 mm)
Max Line: 7/16 in. (11 mm)
Length: 3 in. (76 mm)
Width: 1 1/4 in. (31 mm)
Height: 3 17/32 in. (90 mm)
Bearing Height: 2 5/32 in. (55 mm)
SWL: 1000 lbs. (450 kg)
Weight: 4.5 oz. (128 g)
