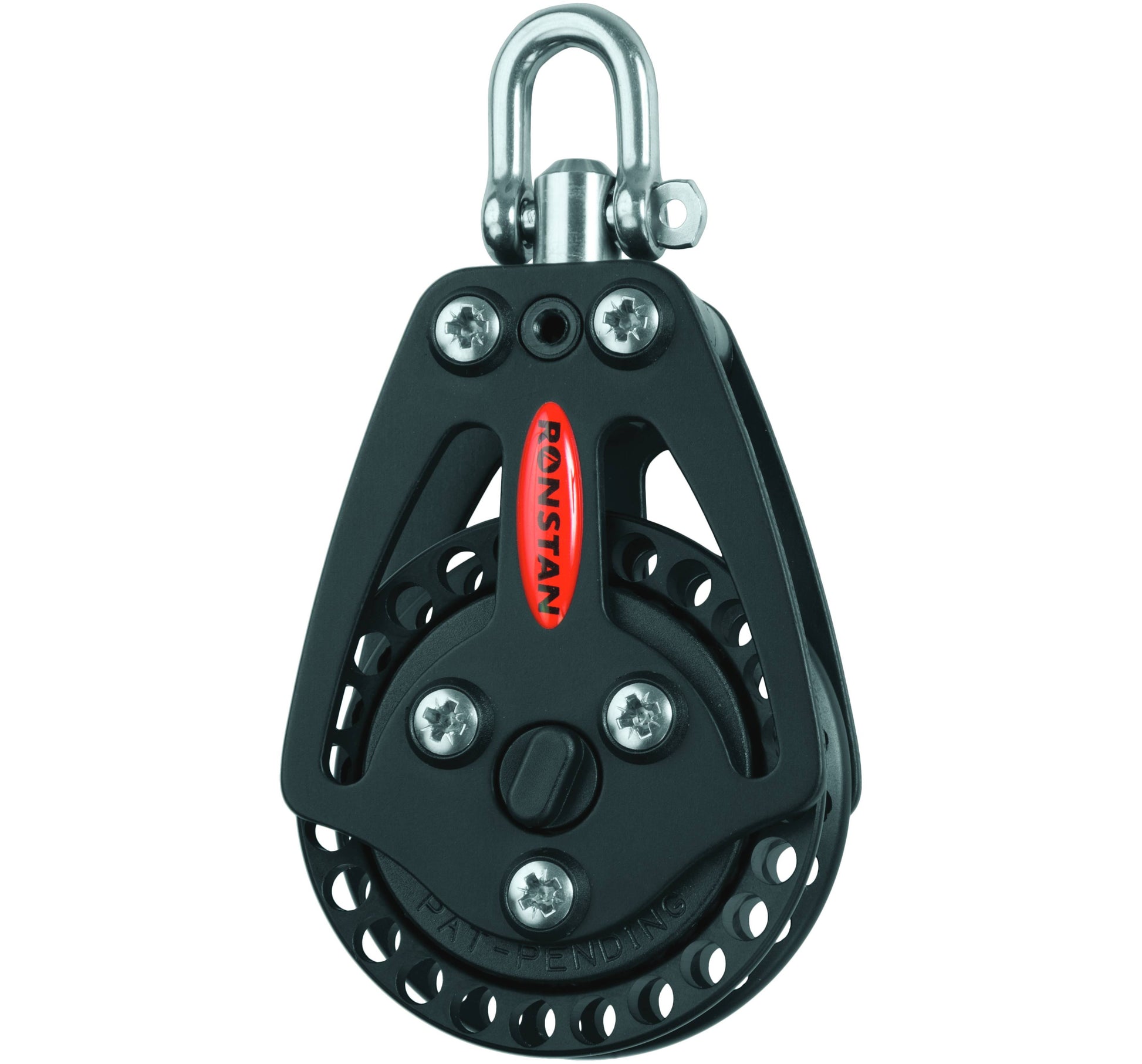

Ronstan Series 60 Single Ratchet Block

Ronstan Series 60 Single Ratchet Block

Product Information

The patented extruded hole design, in conjunction with the groove profile of the sheave, provides a more powerful grip than conventional designs - up to 20:1 holding power. Unrivalled low weight is achieved by the use of a Torlon® ratchet pawl, high grade machined alloy sheave and black Acetal hubs and bearings. On-Off switching knob is fitted to both sides of the swivel blocks (one can be removed if desired). Ratchet blocks can be disassembled for servicing or customization.

Features:

Unrivaled 20:1 holding power

Dual sided On-Off switch

Ability to operate On/Off switch under load

Low friction ball bearing system

Lightweight

Cheek cut-outs for easy bearing maintenance

Specifications:

Sheave Ø: 2 3/8 in. (60mm)

Max. Rope Ø: 3/8 in. (10mm)

Max. Cable Ø: - in (mm)

Pin Ø: 3/16 in. (5mm)

M.W.L.: 550 lb. (250 kg)

B. L.: 3020 lb. (1370 kg)

Weight: 5.3 oz. (150 g)

Applications

Mainsheet on powerful dinghies and skiffs

Series 60 mainsheet systems on sportsboats using RF7 mainsheet swivel units

Control line applications on larger yachts

Spinnaker sheets on sportsboats and small keel boats (lateral lead blocks)

Materials

Carbon black Acetal ball bearings

Anodised aluminium sheave and cheek plates

Torlon® ratchet pawl

Grade 316 stainless steel forged shackle
