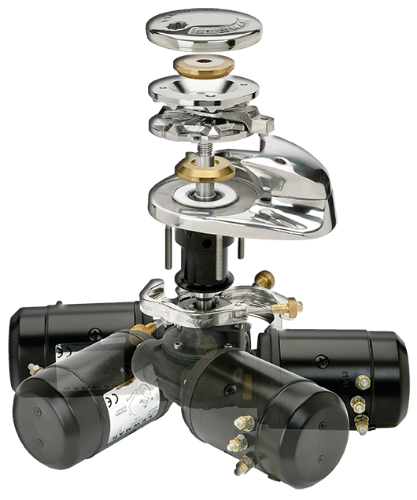

Lewmar V3 Gypsy w/ FastFit 24V (003)

Item #

6672212110-142

$3,388.67 $4,840.95 You Save 29% ($1,452.28)

Usually ships within 1-3 days

Product Description

Lewmar V3 Gypsy w/ FastFit 24V (003)

Kit includes: Windlass, Rocker Switch, Circuit Breaker, Contactor and Winch Handle.

Dimensions

A - 1 11/16" (42mm)

B - 3" (75mm)

C - 6 5/16" (161mm)

D - 13 3/4" (348mm)

E - 6 3/16" (157mm)

F - 2 3/4" (70mm)

G - 9 1/8" (237mm)

H1 - 3 5/8" (92mm)

H2 - 6 5/8" (168mm)

I - 4 1/4" (114mm)

J - 12 13/16" (310mm)

K - 6 13/16" (173mm)

Specifications

Model - V3

Motor Power Watts - 1000W

Normal Current Draw - 60A

Circuit Breaker - 90A

Max Pull - 2248 lbs. (1020 kg)

Max Line Speed - 98ft/min (30m/min)

Working Load - 535 lbs. (243 kg)

Normal Line Speed - 98 ft. (30m)

App. Weight Gypsy Only - 47 lbs. (21.5 kg)

Gypsy Specifications

Gypsy Number - 003

Chain Description - 10mm DIN 766, Campbell 3/8" S3, Lewmar 9.5mm G40*

Rope Description - 5/8" (16mm) 3-strand and 8-plait

Cable Sizes

Voltage - 24V

Length of Cable Run - 0'-23'(0-7mm) 23'-50'(7-15m) 8 AWG (10mm²) 6 AWG (16mm²)

Switch Wiring - 16 AWG (1.5mm²)

Current Rating for Switch Wire - 5A
