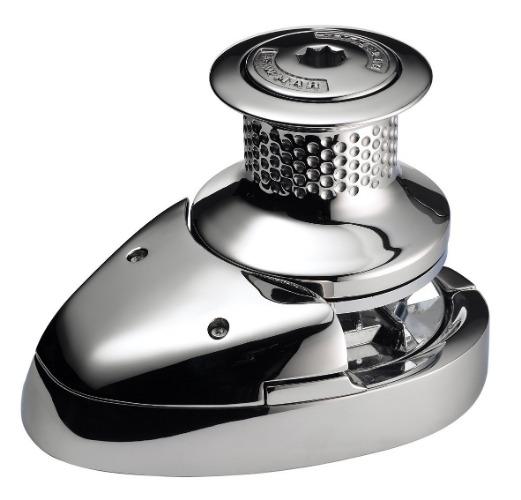

Lewmar V2 Gypsy Drum w/ FastFit 24V (001)

Item #

6672022198-140

$2,777.64 $4,408.95 You Save 36% ($1,631.31)

Usually ships within 1-3 days

Product Description

Lewmar V2 Gypsy Drum w/ FastFit 24V (001)

Kit includes: Windlass, Rocker Switch, Circuit Breaker, Contactor and Winch Handle.

Dimensions

A - 1 11/16" (42mm)

B - 3" (75mm)

C - 6 5/16" (161mm)

D - 13 3/4" (348mm)

E - 6 3/16" (157mm)

F - 2 3/4" (70mm)

G - 9 1/8" (237mm)

H1 - 3 5/8" (92mm)

H2 - 6 5/8" (168mm)

I - 4 1/4" (114mm)

J - 12 13/16" (310mm)

K - 6 13/16" (173mm)

Specifications

Model - V2

Motor Power Watts - 900W

Normal Current Draw - 45A

Circuit Breaker - 50A

Max Pull - 1675 lbs. (760 kg)

Max Line Speed - 79ft/min (24m/min)

Working Load - 396 lbs. (180 kg)

Normal Line Speed - 53 ft. (16m)

App. Weight Gypsy Only - 42 lbs. (19 kg)

App. Weight Gypsy/Drum - 48.5 lbs. (22 kg)

Gypsy Specifications

Gypsy Number - 001

Chain Description - 8mm DIN 766, 8mm ISO 4565, 5/16" G40*

Rope Description - 1/2"-5/8" (12-16mm) 3-strand and 8-plait (5/8" Only)

Cable Sizes

Voltage - 24V

Length of Cable Run - 0'-23'(0-7mm) 23'-50'(7-15m) 10 AWG (6mm²) 8 AWG (6mm²)

Switch Wiring - 16 AWG (1.5mm²)

Current Rating for Switch Wire - 5A
