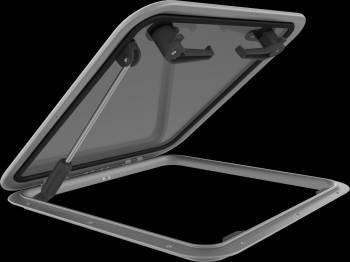

Lewmar Size 50 Low Profile Hatch w/ Stay

Lewmar Size 50 Low Profile Hatch w/ Stay

Size 50 Low Profile Hatch with Stay is made to order. All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).

Mounting Instructions:

Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Specifications

Support System - Stay

Lower Frame (in) - 9/16

Acrylic Color - Smoke Grey

Hatch Weight (lb) - 10.6

Acrylic Window Thickness (in) - 5/16

Dimensions

Length X (in) - 17 5/8

Width Y (in) - 22 11/16

Height Z (in) - 1

Radii R (in) - 2 7/8

Cut-Out Length X1 (in) - 14 13/16

Cut-Out Width Y1 (in) - 19 15/16

Cut-Out Radii R1 (in) - 1 11/16
