Lewmar Size 50 Flat Base Ocean Hatch

Lewmar Size 50 Flat Base Ocean Hatch

All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).

Mounting Instructions:

Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Specifications

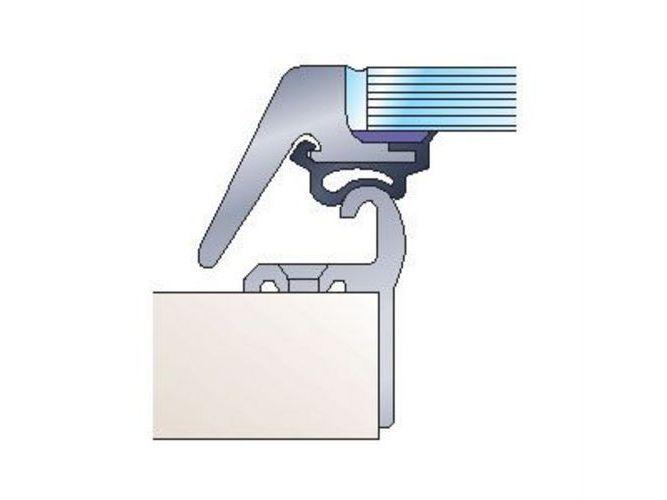

Lower Frame (in) - Flat Base

Acrylic Color - Smoke Grey

Hatch Weight (lb) - 16.1

Acrylic Window Thickness (in) - 1/2

Dimensions

Length X (in) - 17 1/2

Width Y (in) - 22 5/8

Height Z (in) - 1 11/16

Radii R (in) - 3

Hinge Length HX (in) - 3/16

Hinge Width HY (in) - 14 7/16

Cut-Out Length (Flat/Flange) X1 (in) - 14 5/8

Cut-Out Width (Flat/Flange) Y1 (in) - 19 3/4

Cut-Out Radii (Flat/Flange) R1 (in) - 1 9/16
