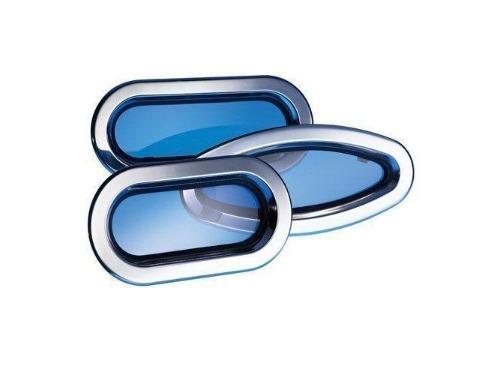

    Lewmar Size 0 Opening Stainless Portlight

    Lewmar Size 0 Opening Stainless Portlight

    Item #

    393020262

    $285.36 $452.95 You Save 36% ($167.59)

    Usually ships within 1-3 days

    Product Description

    Lewmar Size 0 Opening Stainless Portlight

    Specifications

  • Trim Color - White

  • Version - Opening

  • Weight (lb) - 3.3

    Dimensions

  • X (in) - 6 15/16

  • Y (in) - 12 11/16

  • Z (in) - 3/16

  • R (in) - 2 7/16

  • X1 (in) - 6 1/8

  • Y1 (in) - 12

  • R1 (in) - 2 1/16

  • Acrylic Window Thickness (in) - 15/16

    Mounting Instructions:

    Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.

  • Portlights should be fitted to a flat surface with a maximum tolerance of 1mm

  • Maximum hull thickness 30mm

  • Minimum hull thickness 9mm

  • Portlight opening is restricted on very thick hulls.

  • Opening angle at 21mm hull thickness is 165.

  • All Portlights supplied with M5 x 20 screws (hull thickness 12-17mm)

  • Complete with flyscreen
