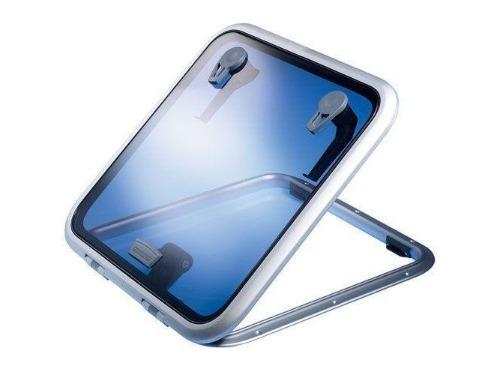

Lewmar Size 03 Low Profile Self Supporting Hatch

Lewmar Size 03 Low Profile Self Supporting Hatch

All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).

Mounting Instructions:

Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Specifications

Support System - Self Supporting

Lower Frame (in) - 9/16

Acrylic Color - Smoke Grey

Hatch Weight (lb) - 3.5

Acrylic Window Thickness (in) - 5/16

Dimensions

Length X (in) - 9 11/16

Width Y (in) - 11 7/8

Height Z (in) - 1

Radii R (in) - 2 7/8

Cut-Out Length X1 (in) - 6 15/16

Cut-Out Width Y1 (in) - 9 1/8

Cut-Out Radii R1 (in) - 1 11/16
