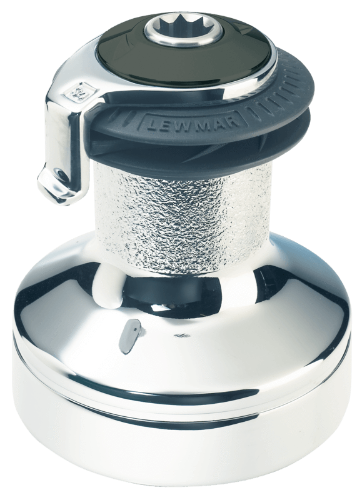

Lewmar 54ST Two Speed Self-Tailing Chrome Winch

Lewmar 54ST Two Speed Self-Tailing Chrome Winch

The ultimate self-tailing design, this winch is simple to use and provides a firm grip on the line. Adapts to a wide range of line diameter automatically.

Specifications

Gear Ratio 1st/2nd - 2.8:1/11.2:1

Power Ratio 1st/2nd - 13.8:1/54:1

Weight(lb) - 37.5

Dimensions

Drum Diameter D(in) - 4 1/8

Base Diameter B(in) - 8 1/16

Height H(in) - 9 7/8

Line Entry L(in) - 4 1/2

Line Size(in) - 5/16-5/8

Mounting Instructions

5 x M8 (5/16 in) c'sk head screws on 150mm (5 29/32 in) PCD. Lewmar recommend that the rope enters onto the drum at an angle of 5" to 10" to the base axis of the winch. To achieve this angle it may be necessary to use a base wedge when installing the winch.
