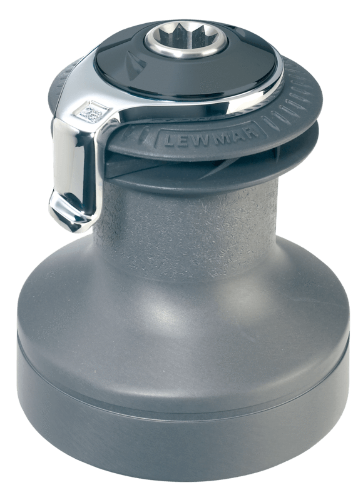

Lewmar #30 Two Speed Self-Tailing Alloy Winch

Lewmar 30ST Two Speed Self-Tailing Alloy Winch

The ultimate self-tailing design, this winch is simple to use and provides a firm grip on the line. Adapts to a wide range of line diameter automatically.

Specifications

Gear Ratio 1st/2nd - 2:1/4.2:1

Power Ratio 1st/2nd - 13.8:1/29.2:1

Weight(lb) - 9.2

Dimensions

Drum Diameter D(in) - 2 15/16

Base Diameter B(in) - 5 7/16

Height H(in) - 6 5/16

Line Entry L(in) - 2 11/16

Line Size(in) - 5/16-1/2

Mounting Instructions

5 x M6 (1/4 in) c'sk head screws on 113mm (4 7/16in) PCD. Lewmar recommend that the rope enters onto the drum at an angle of 5° to 10° to the base axis of the winch. To achieve this angle it may be necessary to use a base wedge when installing the winch.
