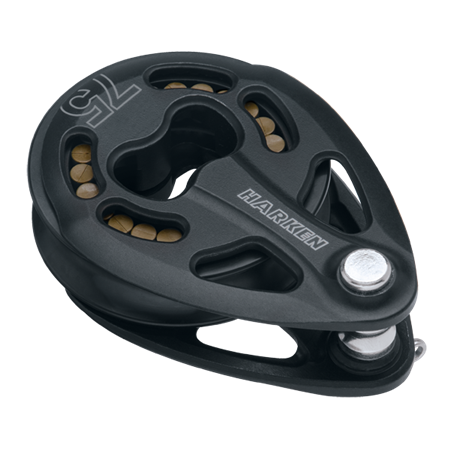

Harken 75mm High-Load Padeye Block

Harken 75mm high-load padeye block

The entire line of Black Magic® AirBlocks® has been redesigned with a sleek new look. Their unique, performance-packed engineering remains exactly the same. Teardrop blocks are ideal as masthead leads and in other applications where limited articulation or direct attachment is desired. When attached to a compatible padeye, Teardrop blocks will not hit the deck when lines are slack, but allow enough movement to ensure fair leads.

Sheave Ø (mm) - 75

Sheave Ø (in) - 2 15/16

Length (mm) - 113

Length (in) - 4 7/16

Weight (g) - 247

Weight (oz) - 8.27

Shackle pin Ø (mm) - 10

Shackle pin Ø (in) - 3/8

Maximum line Ø (mm) - 14

Maximum line Ø (in) - 9/16

Maximum working load (kg) - 2268

Maximum working load (lb) - 5000

Breaking load (kg) - 4535

Breaking load (lb) - 10000

Use with padeye - 648,689
