Harken 5/16" (8mm) "D" Shackle

Item #

2115

$18.86 $23.45 You Save 19% ($4.59)

Usually ships within 1-3 days

Description
Downloads & Resources
Articles

Product Description

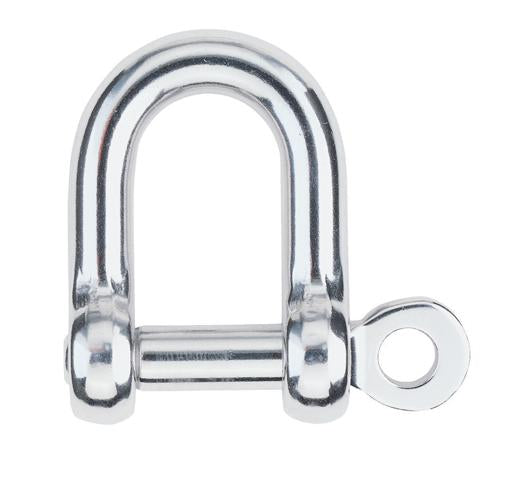

Harken 5/16" (8mm) "D" Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. "D" shackles are the most common type of shackle. They are best suited for aligned attachment points.

Specifications:

Shackle pin Ø: 5/16 in. (8 mm)

Weight: 2.08 oz. (59 g)

A: 1 in. (25 mm)

B: 11/16 in. (17 mm)

Max. working load: 3040 lbs. (1380 kg)

Breaking load: 6080 lbs. (2760 kg)

Drawing - DWG: 2115.dwg (open/save)

Drawing - DXF: 2115.dxf (open/save)

3D drawing - IGS: 2115.igs (open/save)

Photo - EPS: 2115.eps (open/save)

Photo - JPG: 2115.jpg (open/save)
