Harken 1/4" (6mm) Shackle

Item #

2108

$14.95 $16.60 You Save 9% ($1.65)

Usually ships within 1-3 days

Description
Downloads & Resources
Articles

Product Description

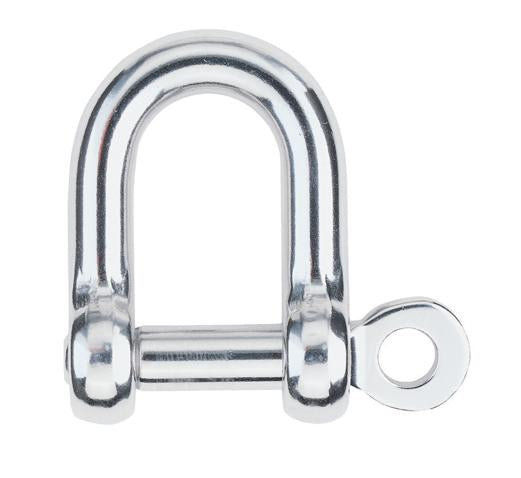

Harken 1/4" (6mm) Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

"D" shackles are the most common type of shackle. They are best suited for aligned attachment points.

Specifications:

Shackle pin Ø: 1/4 in. (6 mm)

Weight: 0.88 oz. (25 g)

A: 3/4 in. (19 mm)

B: 9/16 in. (14 mm)

Max. working load: 1650 lbs. (750 kg)

Breaking load: 3300 lbs. (1500 kg)

Drawing - DWG: 2108.dwg (open/save)

Drawing - DXF: 2108.dxf (open/save)

3D drawing - IGS: 2108.igs (open/save)

Photo - EPS: 2108.eps (open/save)

Photo - JPG: 2108.jpg (open/save)
