Harken 1/2" (12mm) "D" Shackle

Item #

2126

$41.95 $47.15 You Save 11% ($5.20)

Usually ships within 1-3 days

Description
Downloads & Resources
Articles

Product Description

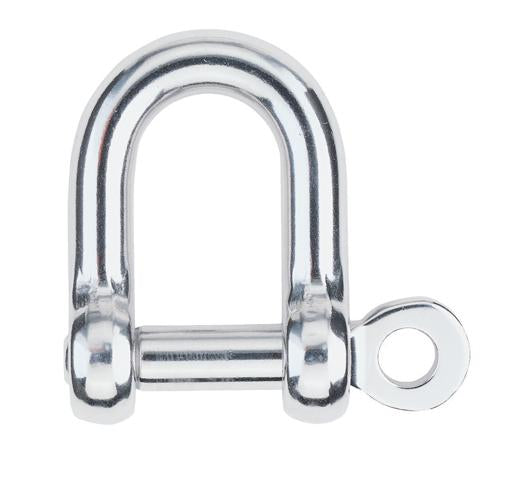

Harken 1/2" (12mm) "D" Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

"D" shackles are the most common type of shackle. They are best suited for aligned attachment points.

Specifications:

Shackle pin Ø: 1/2 in. (12 mm)

Weight: 6.70 oz. (190 g)

A: 1 1/2 in. (38 mm)

B: 15/16 in. (24 mm)

Max. working load: 7120 lbs. (3230 kg)

Breaking load: 14240 lbs. (6460 kg)

Drawing - DWG: 2126.DWG (open/save)

Drawing - DXF: 2126.DXF (open/save)

3D drawing - IGS: 2126.IGS (open/save)

Photo - EPS: 2126.eps (open/save)

Photo - JPG: 2126.jpg (open/save)
