Harken 1/4" (6mm) "D" Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an "HR" imprint for easy identification.

Specifications:

Shackle pin Ø: 1/4 in. (6 mm)

Weight: 0.80 oz. (22.5 g)

A: 3/4 in. (19 mm)

B: 9/16 in. (14 mm)

Max. working load: 2770 lbs. (1260 kg)

Breaking load: 5540 lbs. (2510 kg)

3D drawing - IGS: 2109.IGS (open/save)

Photo - EPS: 2109.eps (open/save)

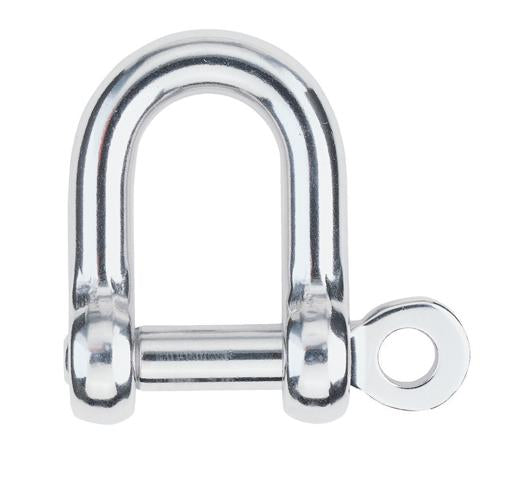

Photo - JPG: 2109.jpg (open/save)
